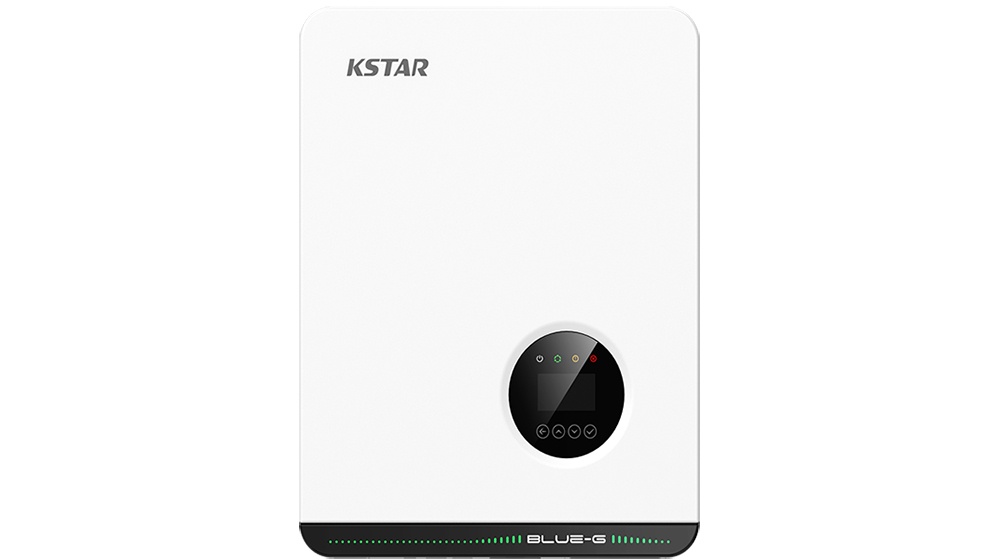

The BLUE-G 30 KT-M1 is a three-phase grid-tied inverter designed for commercial and industrial solar systems. It stands out for its high efficiency, compact design, and compatibility with high-performance solar panels.
Conditions for Warranty Coverage:
KSG-3K-SM
|
KSG-10K-DM
|
KSG-20K-DM
|
Max. DC voltage | 500Vdc | 500Vdc | 500Vdc | 1000Vdc | 1000Vdc | 1000Vdc |
MPPT voltage range | 80~450Vdc | 80~450Vdc | 250~950Vdc | 250~950Vdc | 250~950Vdc | 250~950Vdc |
Number of MPPT | 1 | 2 | 2 | 2 | 3 | 3 |
String per MPPT | 1 | 1 | 1 | 2 | 2 | 4 |
Max. input current per MPPT | 13A | 13A/13A | 21A/21A | 21A/21A | 26A/26A/26A | 36A/36A/36A |
Normal AC output power | 5KW | 5KW | 10KW | 20kW | 30kW | 55kW |
Rated AC volatge | 230Vac | 230Vac | 400Vac | 400Vac | 400Vac | 400Vac |
Rated AC grid frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
Max. output current | 11A | 22A | 17A | 32A | 44A | 80A |
AC Connection | LN+PE | LN+PE | 3W+N+PE/3W+PE | 3W+N+PE/3W+PE | 3W+N+PE/3W+PE | 3W+N+PE/3W+PE |
Dimensions W x D x H (mm) | 265x325x126 | 317x466x150 | 553×715×228 | 553×715×228 | 636×958×260 | 636×958×260 |
Weight(kg) | 8.6 | 15.5 | 35 | 39 | 61 | 68 |
Operating temperature range | –25°C~+60°C | –25°C~+60°C | –25°C~+60°C | –25°C~+60°C | –25°C~+60°C | –25°C~+60°C |
Protection rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
